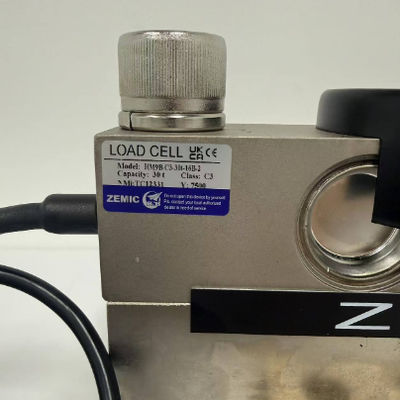

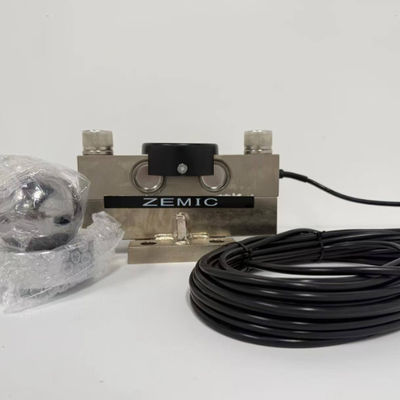

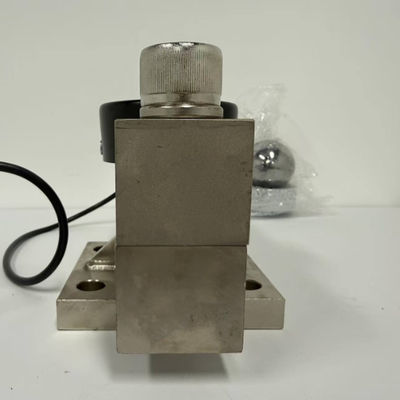

Original Factory Cell Load 30 Ton Keli Load Cell Sensors Jembatan Timbang Grains HM9B for Weighbridge Timbangan

10 adet
MOQ
Anlaşılabilir
fiyat
Original Factory Cell Load 30 Ton Keli Load Cell Sensors Jembatan Timbang Grains HM9B for Weighbridge Timbangan
Özellikleri Fotoğraf Galerisi Ürün Açıklaması Fiyat talebi
Özellikleri
Teknik Özellikler
Malzeme: Alaşım çelik
Teori: Direnç Sensörü
Çıkış: Analog Sensör
Kullanım: Basınç sensörü
isim: düşük kuvvetli yük hücresi
Nominal Yük: 30t
Temel bilgiler
Menşe yeri: ÇİN
Marka adı: ZEMIC
Sertifika: OIML
Model numarası: HM9B
Ödeme & teslimat koşulları
Ambalaj bilgileri: karton ve palet
Teslim süresi: 5-15 gün
Yetenek temini: 1000pcs/m
Ürün Açıklaması

Original Factory Cell Load 30 Ton Keli Load Cell Sensors Jembatan Timbang Grains HM9B for Weighbridge Timbangan

Specifications:
Capacity t 10/20/25/30/40SE/40/50
Accuracy C1 C2 C3 A5M B10M
Approvals OIML R60 C3
Maximum number of
verification intervals		 n max 1000 2000 3000 5000 10000
Minimum load cell
verification interval		 v min Emax/3000 Emax/5000 Emax/7500 Emax
/15000		 Emax
/10000
Combined error (%FS) ≤±0.050 ≤±0.030 ≤±0.020 ≤±0.026 ≤±0.050
Creep (%FS/30min) ≤±0.038 ≤±0.024 ≤±0.016 ≤±0.017 ≤±0.040
Temperature effect
on sensitivity		 %FS/10℃) ≤±0.028 ≤±0.017 ≤±0.011 ≤±0.013 ≤±0.040
Temperature effect
on zero		 (%FS/10℃) ≤±0.047 ≤±0.023 ≤±0.015 ≤±0.014 ≤±0.020
Output sensitivity mv/v) 2.0±0.002 2.3±0.002 2.4±0.002 1.9±0.002 1.8±0.002
Input resistance (Ω) 700 ±7 775 ±5 750 ±7
Output resistance (Ω) 700 ±7
Insulation resistance (MΩ) ≥ 5000(50VDC)
Zero balance (%FS) 1.5
Temperature, compensated (℃) -10~+40
Temperature,allowed (℃) -35~+65
Excitation, Recommended (V) 5~12(DC)
Excitation,Max (V) 18(DC)
Safe overload (%FS) 150
Ultimate overload (%FS) 300
Outline Dimension mm(inch):

Original Factory Cell Load 30 Ton Keli Load Cell Sensors Jembatan Timbang Grains HM9B for Weighbridge Timbangan 0

Capacity:10t to 50t.
High accuracy.
Alloy steel construction.
Easy installation, reliable performance.

Description:

1. HM9B load cell are available in the capacities 10t to 50t.
2. Alloy steel construction, nickel plated , hermetically welded,oil-proof,waterproof and anti-corrosive gas and medium making ,it suitable for all kinds of environments.
3. Dual shear beam, Suitable for electronic truck scales,railway scales and other electronic weighing devices.
4.It is safety and anti-explosion product that can be used in atrocious weather and hazardous areas.

Original Factory Cell Load 30 Ton Keli Load Cell Sensors Jembatan Timbang Grains HM9B for Weighbridge Timbangan 1

Original Factory Cell Load 30 Ton Keli Load Cell Sensors Jembatan Timbang Grains HM9B for Weighbridge Timbangan 2Original Factory Cell Load 30 Ton Keli Load Cell Sensors Jembatan Timbang Grains HM9B for Weighbridge Timbangan 3

Applications:

It is used in truck scale/weighbridge

Competitive Advantage:
  • OEM is available
  • 24 hours online service
  • Inquiry will be replied in 2 hours
  • One year warranty
  • 1% free spare part
  • Free parts for any breakdown with convincing evidence
