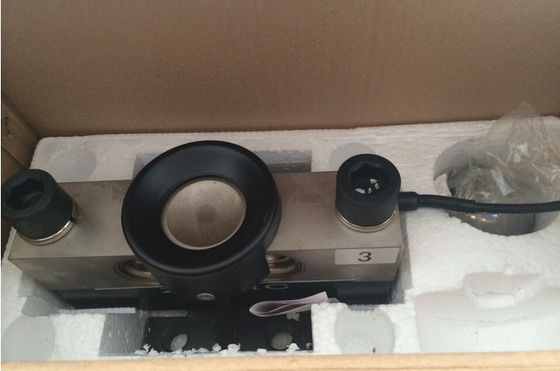

30t Çift Kesme Kirişli Tartı Yük Hücresi

30t Double Shear Beam Type Weighing Load Cell
30t Double Shear Beam Type Weighing Load Cell 30t Double Shear Beam Type Weighing Load Cell 30t Double Shear Beam Type Weighing Load Cell

Büyük resim :  30t Çift Kesme Kirişli Tartı Yük Hücresi

Ürün ayrıntıları:
Menşe yeri: China
Marka adı: ZEMIC
Sertifika: OIML
Model numarası: HM9B
Ödeme & teslimat koşulları:
Min sipariş miktarı: 10pcs
Fiyat: negotiation
Ambalaj bilgileri: cartons and pallet
Teslim süresi: 15days
Yetenek temini: 1000pcs/m
Detaylı ürün tanımı
Malzeme: Alaşımlı çelik teori: Direnç Sensörü
Çıktı: Analog SENSÖR kullanım: Tüketim Sensörü
ad: düşük kuvvet yük hücresi Nominal yük: 50T
Vurgulamak:

30t Kiriş Tipi Yük Hücresi

,

çift makaslı kiriş yük hücresi

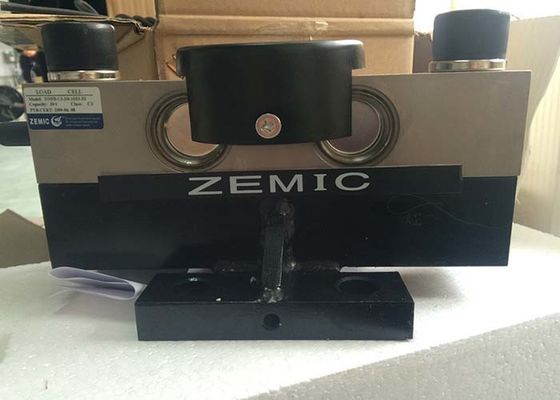

ZEMIC HM9B 30t double shear beam load cells for weighbridge, truck scale



Specifications:

Capacity t 10/20/25/30/40SE/40/50
Accuracy   C1 C2 C3 A5M B10M
Approvals       OIML R60 C3
Maximum number of
verification intervals
n max 1000 2000 3000 5000 10000

Minimum load cell
verification interval



v min



Emax/3000



Emax/5000



Emax/7500



Emax
/15000



Emax
/10000



Combined error (%FS) ≤±0.050 ≤±0.030 ≤±0.020 ≤±0.026 ≤±0.050
Creep (%FS/30min) ≤±0.038

≤±0.024



≤±0.016





≤±0.017



≤±0.040
Temperature effect
on sensitivity

%FS/10℃)



≤±0.028





≤±0.017

≤±0.011



≤±0.013 ≤±0.040
Temperature effect
on zero

(%FS/10℃)





≤±0.047



≤±0.023



≤±0.015



≤±0.014



≤±0.020

Output sensitivity



mv/v)



2.0±0.002

2.3±0.002



2.4±0.002



1.9±0.002



1.8±0.002



Input resistance (Ω) 700 ±7 775 ±5 750 ±7
Output resistance (Ω)

(Ω)

700 ±7

Insulation resistance (MΩ) ≥ 5000(50VDC)
Zero balance (%FS) 1.5
Temperature, compensated

(℃)



-10~+40



Temperature,allowed

(℃)



-35~+65



Excitation, Recommended

(V)



5~12(DC)



Excitation,Max

(V)



18(DC)



Safe overload

(%FS)



150
Ultimate overload

(%FS)



300

Outline Dimension mm(inch):



30t Çift Kesme Kirişli Tartı Yük Hücresi 0

Capacity:10t to 50t.
High accuracy.
Alloy steel construction.
Easy installation, reliable performance.



Description:



1. HM9B load cell are available in the capacities 10t to 50t.
2. Alloy steel construction, nickel plated , hermetically welded,oil-proof,waterproof and anti-corrosive gas and medium making ,it suitable for all kinds of environments.
3. Dual shear beam, Suitable for electronic truck scales,railway scales and other electronic weighing devices.
4.It is safety and anti-explosion product that can be used in atrocious weather and hazardous areas.



Applications:



It is used in truck scale/weighbridge



Competitive Advantage:

1. OEM is available

2. 24 hours online service

3. Inquiry will be replied in 2 hours

4. One year warranty

5. 1% free spare part

6. Free parts for any breakdown with convincing evidence
